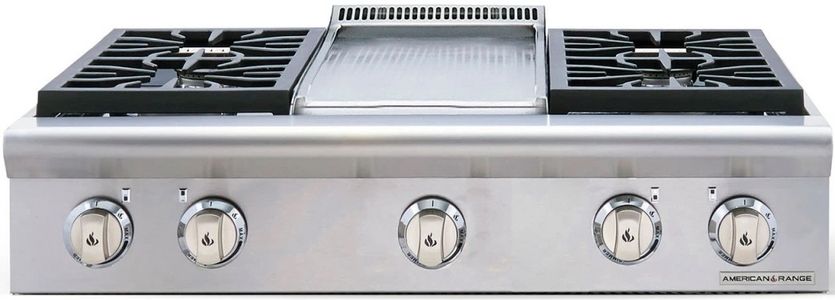

American Range Legend Series 36" Stainless Steel Gas Rangetop


Model #:

ARSCT-364GD-L

Model #: ARSCT-364GD-L
696650
American Range
$5,119.00

At a Glance

Product Dimensions 9.31"h x 35.88"w x 29.5"d

Inspired by their passion for perfection, renowned for their product innovation and quality, American Range is a recognized leader in the commercial food service industry. Their commercial workhorse pedigree has been proven in the world's most demanding kitchens.Read More

$5,119.00

What We Offer

Services
None Selected
You Might Also Need
None Selected

Get to know this product.

Product Overview

Product Overview

Inspired by their passion for perfection, renowned for their product innovation and quality, American Range is a recognized leader in the commercial food service industry. Their commercial workhorse pedigree has been proven in the world's most demanding kitchens for over past 30 years. In that time, innovative technology and robust engineering have advanced every aspect of their cooking equipment. Their commercial equipment is constructed to withstand the challenges of the most demanding chefs and kitchens. Available at AJ Madison.

3 sizes of burners to serve your everyday needs: 17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm).

Continuous and flush commercial-grade cast iron grates allow for easy transfer of pots and pans across the cooking surface.

Sealed burners deliver exceptional performance at every level setting and lift off to provide easy cleanup.

Sealed burners create simmer temperatures at minimum setting.

Variable infinite flame settings for all sealed top burners.

Fail-safe system ensures re-ignition in the event the flame goes out even on the lowest burner setting.

Sealed single piece tooled stainless steel cook top can hold more than a gallon of spills.

Analog controls provide easy, push and turn operation ensuring child safety.

Blue LED lights indicate flame and oven functions provided with every knob.

Heavy metal die-cast black satin knobs with chrome bezels.

Useful Documents
Specifications

General Specs

ColorStainless Steel
Fuel TypeLiquid Propane
Appliance ColorStainless Steel
Depth (in.)29.5
Grate MaterialCast Iron
Height (in.)9.31
Width (in.)35.88
Appliance Fit Width (in.)36
CollectionLegend Series
Color Finish NameStainless Steel
Burner TypeSealed
Number of Elements/Burners4
Cut Out Depth24.75
Cut Out Width36
Cut Out Height8
Voltage120
Frequency60
Amp15
Cooktop FeaturesContinuous Grate
Cooktop Surface StyleGrate
Cooktop SurfaceStainless Steel

More Information

Surface Burner Rating - Large:17,000 BTU
Surface Burner Rating - Medium:13,000 BTU
Surface Burner Rating - Small:9,000 BTU
Total Gas Connection Rating:86,000 BTU 6 Burners
Gas Supply:7" W.C. Natural, 11" W.C. Propane
